Carbon / EVO Lever Guard Mounting Adapter by Bonamici

Make/Model/Year Universal
Sold Individually
Brand Bonamici Racing

Bonamici parts are made in Italy with a dedication to track-oriented riders.

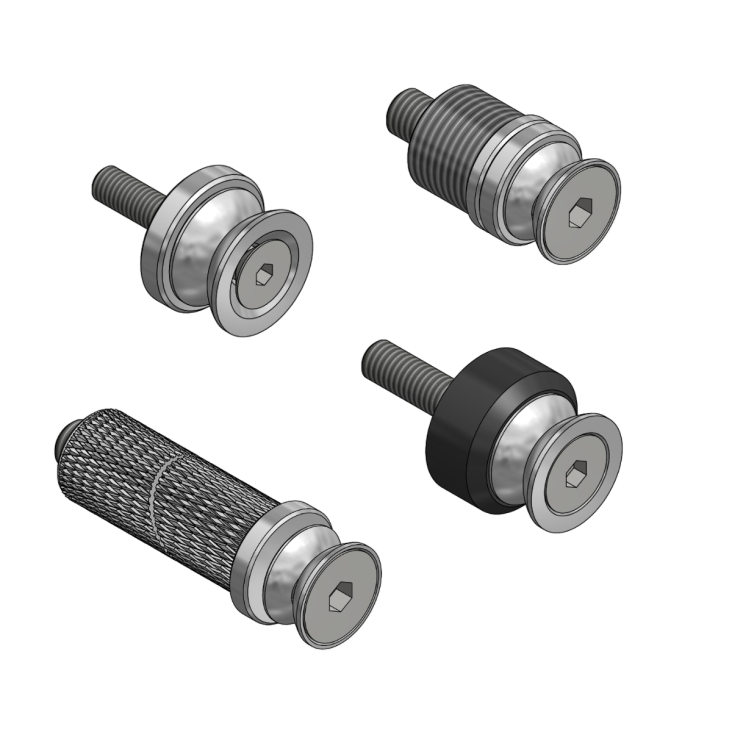

These Bonamici Racing adapters allow you to mount the Bonamici brake lever guard to your handlebars or clipons.

You can simply measure the ID (inner diameter) of your handlebar/clipon opening, to determine which adapter will fit your bike.

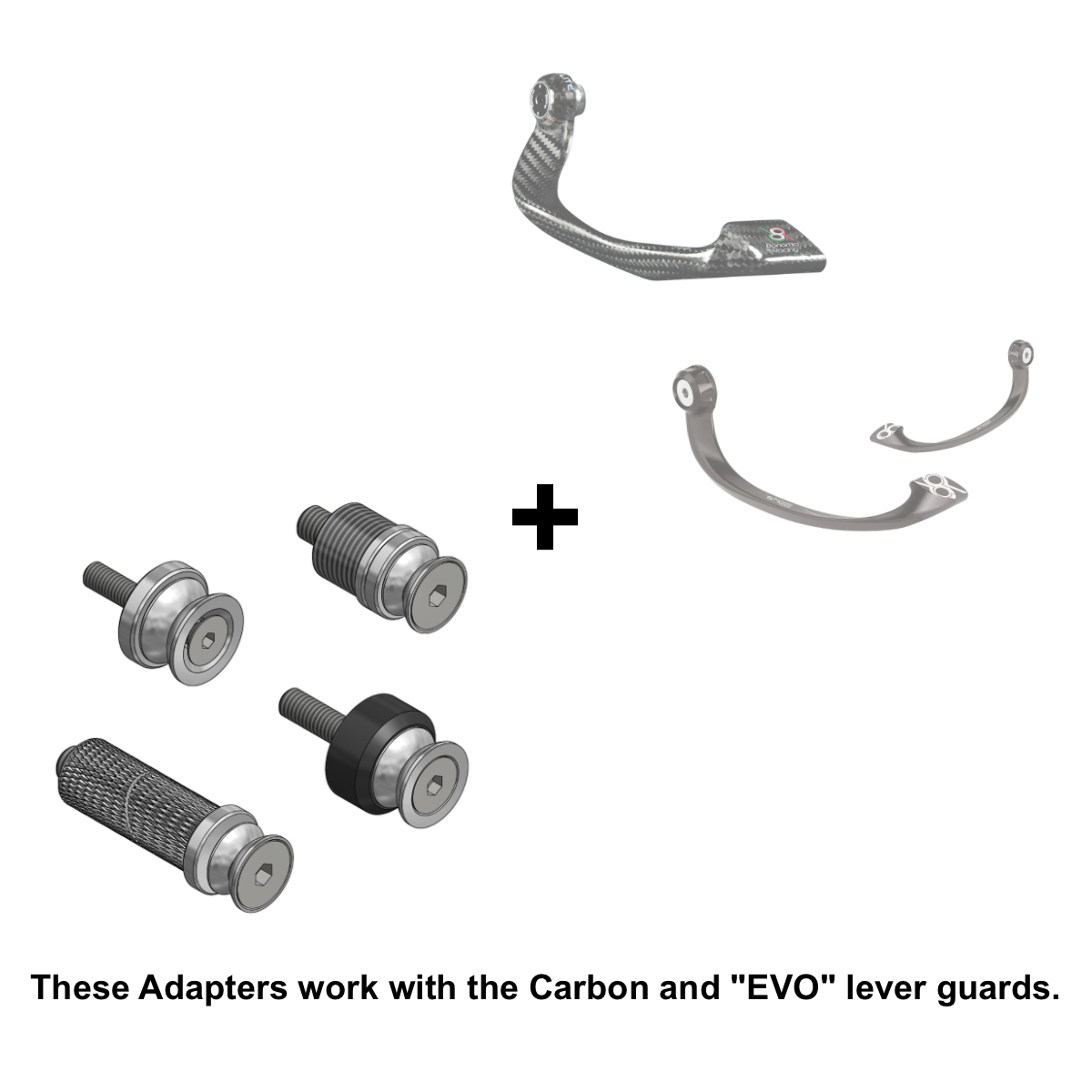

Note: This is the adapter that the Carbon Fiber or EVO brake lever guards (sold separately) mounts to. The images are for reference. The actual adapter you receive will be based on your selection.

Note: Measuring for the adapter size you need, is very simple. For tips on measuring your inner diameter, check out our blog post here.

- PART NUMBER
  ADL13_U
Make/Model/Year
Universal
Sold
Individually
Product
Adapters & Mounts
Brand
Bonamici Racing
Part Number
ADL13_U, ADL14_U, ADL15_U, ADL16_U, ADL18_U, ADL19_U, ADL20_U, ADL17_U, ADL4R_U, ADL660_U, ADL765_U, ADLA_U, ADLB_U, ADLH19_U, ADLRR_U, ADLST_U, ADLSV2_U, ADLT_U, ADLY_U, ADLZX_U

Product questions

Please to ask a question.

NickJ

Jan 20, 2023, 11:58:50 AM

How do I know what size adapter I need?

Administrator

Jan 20, 2023, 12:01:57 PM

Thanks for the question NickJ!
We have a BLOG post about How to Measure Inner Diameter and Outer Diameter of motorcycle bars. You can find it here: https://www.motovationusa.com/how-to-measure-innder-diameter-and-outer-diameter

Customer reviews

Average rating:

5.00 (Votes: 1)

Rating of votes (1)

	5			1customers
	4			0customers
	3			0customers
	2			0customers
	1			0customers

There are no comments yet. Be the first to leave a comment

Please sign in to add review

Race Adapters	Part Number
For Bonamici Racing bars tube	ADLT_U
From ø13mm to ø 14mm tube	ADL13_U
From ø14mm to ø 15mm tube	ADL14_U
From ø15mm to ø 16mm tube	ADL15_U
From ø16mm to ø 17mm tube	ADL16_U
From ø17mm to ø 18mm tube	ADL17_U
From ø18mm to ø 19mm tube	ADL18_U
From ø19mm to ø 20mm tube	ADL19_U
From ø20mm to ø 21mm tube	ADL20_U
Aprilia RS 660	ADL660_U
Aprilia RSV4/RSV4 Factory (2009/>)	ADLA_U
BMW S 1000 RR (2008-2018)	ADLB_U
BMW S 1000 RR (2019->)	ADLRR_U
Ducati Panigale V4	ADL17_U
Ducati Streetfighter V2	ADLSV2_U
Honda CBR1000RR-R Fireblade (2020/>)	ADLH19_U
Honda CBR 1000 RR (2008/2016)	ADLH19_U
Honda CBR 600 RR	ADLH19_U
Kawasaki ZX-4R / ZX-4RR (2023/>)	ADL4R_U
Kawasaki ZX-10R (2011/>)	ADLZX_U
Kawasaki Ninja 400	ADLRR_U
MV Agusta F3 675/800	ADL18_U
MV Agusta F4	ADL16_U
MV Agusta Brutale 675/800	ADL14_U
Suzuki GSX-R 1000 (2017/>)	ADLRR_U
Triumph Speed Triple 1200 RS	ADL660_U
Triumph Speed Triple 1200 RR	ADLST_U
Triumph Street Triple 765 R/RS/RS Moto2 (2023/>)	ADL765_U
Yamaha YZF R1 (1998/>)	ADLY_U
Yamaha YZF R3 (2015/>)	ADLY_U
Yamaha YZF R6 (2006/>)	ADLY_U
Yamaha YZF R7 (2021/>)	ADLY_U
Yamaha MT-09 (2021/>)	ADLY_U
